Preventing Surgical Burns: How PEEK Insulation in Electro Surgical Instruments Saves Lives
In the modern operating suite, electricity is as fundamental as the scalpel. However, the very energy used to seal vessels and dissect tissue carries a silent, invisible risk: stray currents. For years, the medical community has grappled with insulation failures that lead to unintended thermal injuries—surgical burns that can have devastating consequences for patient outcomes.
At Lapex Surgical, based in the precision-manufacturing hub of Sialkot, Pakistan, we have pioneered a solution. By integrating PEEK (Polyether ether ketone) insulation into our Electro Surgical Instruments, we provide a “Gold Standard” barrier against electrical compromise.
1. The Invisible Threat: Why Insulation Fails
Electrosurgery relies on high-frequency electrical currents. If the insulation on your Electro Surgical Instruments is compromised, that current seeks the path of least resistance—often the patient’s healthy tissue.
Primary Causes of Surgical Burns:
- Insulation Failure: Microscopic cracks or “pinholes” in the coating caused by repeated heat sterilization.
- Capacitive Coupling: Current transferred through intact insulation to nearby conductive materials, such as metal trocars.
- Direct Coupling: Accidental contact between the active electrode and another metal instrument.
2. Why PEEK is the “Gold Standard” for Insulation
Many manufacturers use standard nylon or heat-shrink tubing. While cost-effective, these materials degrade rapidly under the extreme conditions of an autoclave. Lapex Surgical utilizes PEEK coating for its superior physical and dielectric properties.
Technical Advantages of PEEK Coating:
- High Dielectric Strength: PEEK provides exceptional electrical resistance, ensuring current remains focused only at the active tip.
- Thermal Resilience: It maintains integrity at temperatures up to 250°C, easily withstanding the 134°C cycles of modern steam autoclaves.
- Chemical Inertness: Resistant to the harsh enzymatic cleaners used in hospital reprocessing.
- Biocompatibility: PEEK is a medical-grade polymer that is non-toxic and safe for prolonged contact with internal tissues.

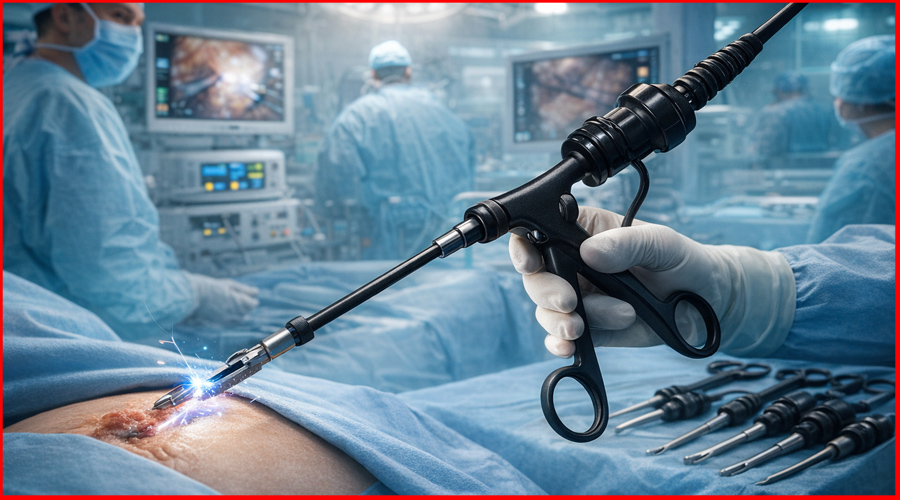

3. Product Spotlight: Lapex Reusable Steel Insulated Handles
Our flagship Reusable Steel Insulated Handle is engineered specifically to house this advanced technology. By combining a high-grade stainless steel core with a PEEK-insulated outer shaft, we offer a tool that is both mechanically robust and electrically safe.
Features of the Lapex Insulated System:
- Ergonomic “Click-Line” Design: Allows for rapid swapping of modular inserts while maintaining a secure electrical connection.
- Universal Compatibility: Our handles feature a standard 4mm connector, compatible with most global electrosurgical generators.
- Extended Lifespan: While disposable tools are “one and done,” our reusable steel handles are validated for hundreds of cycles, significantly reducing hospital waste.
4. Economic Impact: ROI of Reusable Electro Surgical Instruments
Procurement managers must balance safety with budget. The Electro Surgical Instruments from Lapex Surgical offer a compelling Return on Investment (ROI).
Comparison: Reusable vs. Disposable Costs
| Feature | Lapex Reusable PEEK System | Standard Disposable Tools |
|---|---|---|
| Initial Cost | Higher (Investment) | Lower (Per Unit) |
| Cost Per Use | Declines rapidly after 10-15 uses | Constant recurring expense |
| Durability | High (Steel & PEEK construction) | Low (Single-procedure plastic) |
| Environmental Impact | Minimal (Sustainable) | High (Medical plastic waste) |
| Safety Factor | Superior (Tested for high voltage) | Variable (Mass-produced) |
5. Maintenance and Safety Protocols
To ensure your Electro Surgical Instruments continue to provide life-saving protection, Lapex Surgical recommends a strict maintenance regimen.
- Visual Inspection: Before every procedure, inspect the PEEK coating for discolouration or bubbling.
- Electronic Testing: Use an insulation tester to verify the dielectric integrity of the shaft.
- Proper Reprocessing: Avoid abrasive brushes that could scratch the PEEK surface.
6. Frequently Asked Questions (FAQ)
Q: What makes PEEK better than standard plastic coatings?
A: PEEK has a much higher melting point and better resistance to chemical degradation, meaning it won’t crack or peel after repeated autoclaving like cheaper plastics do.
Q: Can Lapex Electro Surgical Instruments be used with any generator?
A: Yes. Our handles are designed with a universal connector that fits standard monopolar and bipolar cables used in modern operating rooms.
Q: Why should I source from a Sialkot manufacturer like Lapex?
A: Sialkot is the world’s surgical manufacturing hub. Lapex Surgical combines this heritage of craftsmanship with modern ISO 13485 certifications to provide German-quality instruments at direct-manufacturer pricing.
7. Choosing Safety Over Compromise
In the world of laparoscopy, the Electro Surgical Instruments you choose are a direct reflection of your commitment to patient safety. By investing in PEEK-insulated technology from Lapex Surgical, you are not just buying a tool—you are eliminating a major source of surgical risk.
👉 Ready to upgrade your surgical safety standards? [Contact Lapex Surgical today for a bulk quotation or to request a sample of our PEEK-insulated instruments.]
Lapex Surgical Industrial Estate, Sialkot, Pakistan. Your Partner in Surgical Precision and Safety.
